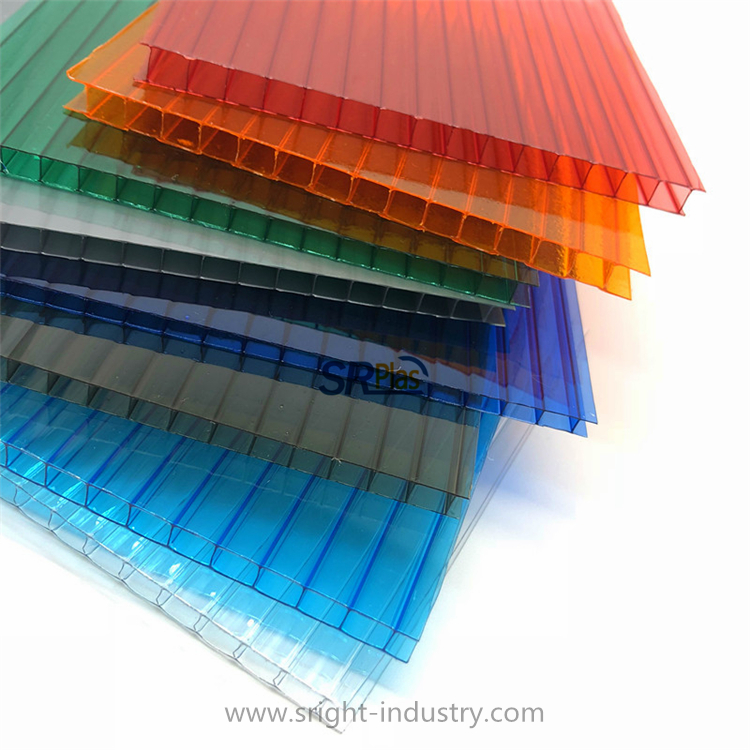

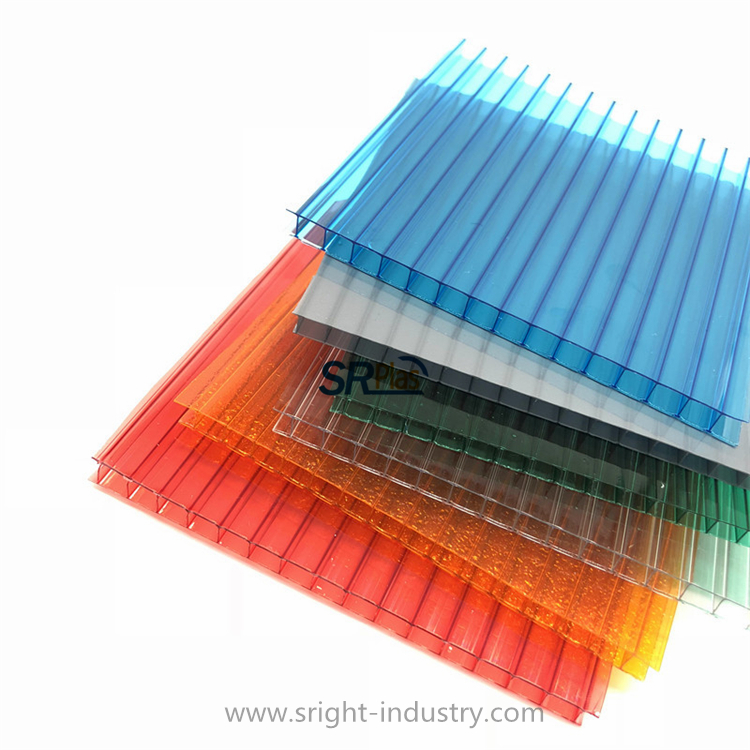

SRIGHT-TWIN WALL POLYCARBONATE HOLLOW SHEET
High impact strength
High light transmittance
Light weight
Weather and UV resistant
High thermal insulation performance
Easy to process and install
Regular Size For Twin Wall Polycarbonate Hollw Sheets
| Structure | Thickness (mm) | Standard Width (mm) | Weight (kg/m2) | K value (w/m2*k) | LT Clear (%) | Min bend radius (mm) |
| 2-wall R-structure | 4 | 2100,1050,700 | 0.85 | 3.96 | 80 | 700 |
| 6 | 2100,1050,700 | 1.3 | 3.56 | 78 | 1050 | |
| 8 | 2100,1050,700 | 1.5 | 3.26 | 76 | 1400 | |
| 10 | 2100,1050,700 | 1.7 | 3.02 | 73 | 1750 | |
| 12 | 2100,1050,700 | 1.9 | 2.78 | 72 | 2100 |
| No. | Item | Data | No. | Item | Data |
1 | impact strength | 850 J/M | 7 | flexural strength | 100 N/mm2 |
| 2 | specific grevity | 1.2 g/cm3 | 8 | modulus of elasticity | 2400 M/pa |
| 3 | Coefficient of thermal expansion | 0.065 mm/m℃ | 9 | tensile stress at break | ≥60 M/pa |
| 4 | service temperature | -40℃~120℃ | 10 | elongation at break | 100% |
| 5 | heat conductivity | 2.3-3.9 w/m2℃ | 11 | heat deflection temperature | 140℃ |
| 6 | tensile strength | ≥60 N/mm2 | 12 | specific heat | 1.17 K.J/kg.K |

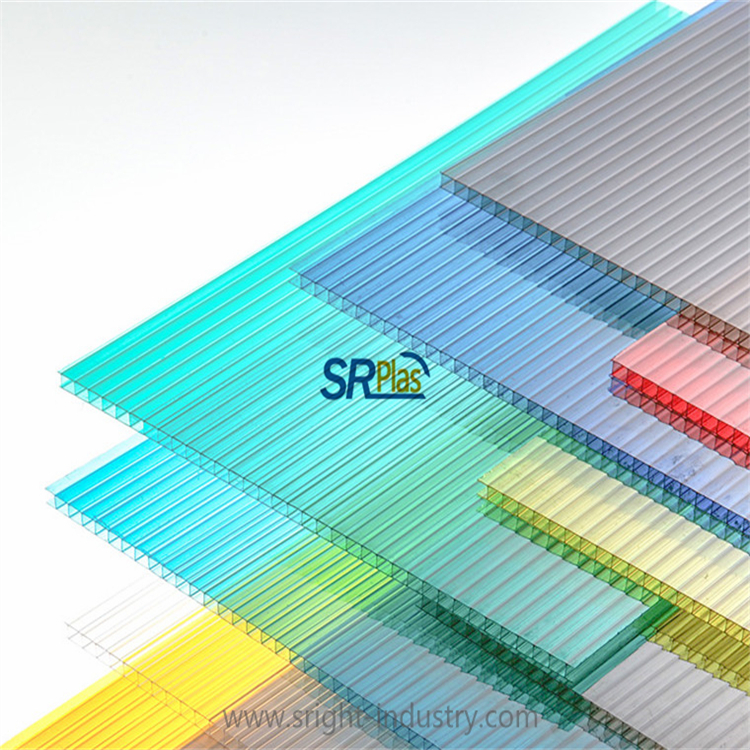

Polycarbonate Hollow Sheets
PC hollow sheets are the most versatile polycarbonate sheets in the market. The glazing system provides outstanding flexibility in design, advanced heat reflection and light transmitting performance. Hollow sheets are manufactured from high quality polycarbonate resin that ensures high impact strength, clarity and excellent transparency, and are 16% the weight of standard glass and 34% the weight of acrylic sheets, which makes them easy to carry.
Due to its unique structure and design PC hollow sheets can be very light and can go from twin wall to 5 walled structures ensuring its lightness and improving its thermal insulation depending upon the applications.
With a wide range of options in terms of clear as well as diffused light,SRplas® Multiwall sheets can provide a maximum of 80 % and minimum of 25% light transmission. They allow light to enter, at a significantly lower heat transmission level, to ensure optimum illumination with maximum comfort. Excellent thermal insulation from the sheets results in phenomenal energy efficiency and savings in terms of primary capital and running costs of air conditioning and heating.
SRplas®Polycarbonate Hollow Sheets Features
  | Benifits: Light weight very high impact strength Good light transmission Weather and UV resistance High thermal insulationSimply processed and install High fire performance rating |  |
| Types: Twin wall PC hollow Sheets Triple wall PC hollow Sheets Four wall PC hollow Sheets Five wall PC hollow Sheets Multi wall PC hollow Sheets Honeycomb PC hollow Sheets |  | Usage: Greenhouse Building skylight Carport Awning Indoor partition folding screen Furniture Bathroom Natatorium coverings |
 | Delivery: Within 7~10 working days Packing: Both sides PE protetive film,kraft paper&pallets are availalbe |  |
Polycarbonate Hollow Sheets Application
