China Factory 10mm 12mm Four Wall Polycarbonate Hollow Sheet Roofing Sheets Roofing Polycarbonate Sheets

Share to:

China Factory 10mm 12mm Four Wall Polycarbonate Hollow Sheet Roofing Sheets Roofing Polycarbonate Sheets

Quick details:
Thickness:8~18mm;
Width:700/1050/1220/1830/2100mm;
Color:clear,bule,red,opal,brown,green,yellow etc.
Light transmision:up to 80%;
Surface:anti UV coated;
Warranty:10 years.
Production capacity:40 tons per day.

Availability:

Quantity:


Inquire Add to Basket

Model: FOUR WALL
Brand: SRIGHT
Code: 39206100

Product Description

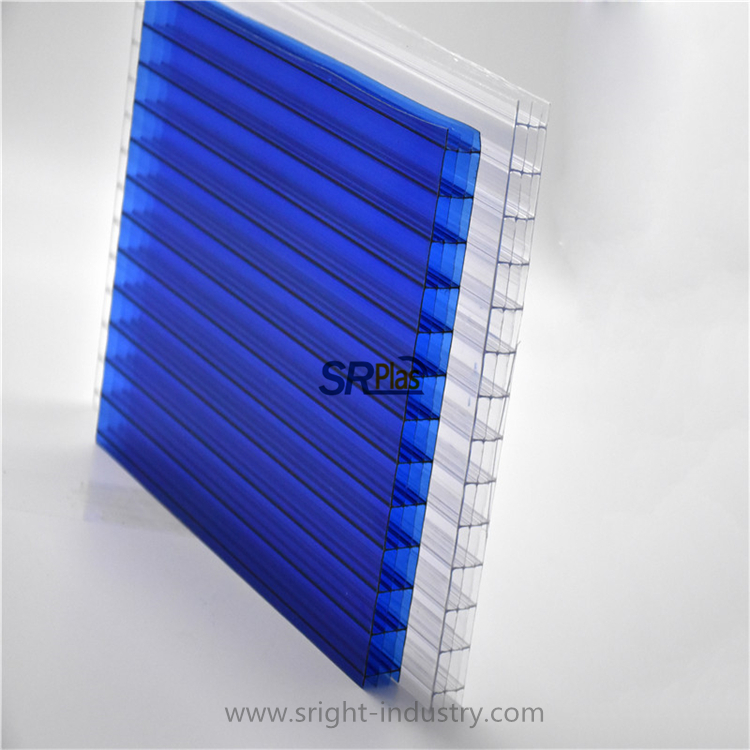

SRIGHT FOUR-WALL POLYCARBONATE HOLLOW SHEET

High impact strength
High light transmittance
Light weight
Weather and UV resistant
Colorful
High thermal insulation performance
Easy to process and install

polycarbonate hollow sheet

Product	100% Virgin Bayer Makrolon UV protection 8mm-20mm Twin Wall PC Polycarbonate Hollow Sheet
Thickness*	8mm-18mm
Length*	5800mm\6000mm\11800mm\12000mm
Width*	1220mm\1560mm\1820mm\2100mm
Standard Size	12202440mm, 21005800mm, 2100*30000mm
Color*	clear\opal\blue\green\grey\brown\yellow\customized
PE Film Cover	Both sides.
Certification	ISO9001:2015 CE Fire resistant & Scratch resistant Report
Warranty	10 years
Fire retardant	B1Grade
Scratch resistant	Up to H level
Service temperature	-40℃~ +200℃,weather resistance
Technology	UV Co-extrusion
Delivery	5-10 days after receipt of deposit
Machinable method	Anti-scratch treatment; High hardness and hardening; anti-static; Prevent glare
Free sample	Yes
Promotion price	Contact us

pc hollow colors

No.	Item	Data	No.	Item	Data
1	impact strength	850 J/M	7	flexural strength	100 N/mm2
2	specific grevity	1.2 g/cm3	8	modulus of elasticity	2400 M/pa
3	Coefficient of thermal expansion	0.065 mm/m℃	9	tensile stress at break	≥60 M/pa
4	service temperature	-40℃~120℃	10	elongation at break	100%
5	heat conductivity	2.3-3.9 w/m2℃	11	heat deflection temperature	140℃
6	tensile strength	≥60 N/mm2	12	specific heat	1.17 K.J/kg.K

Polycarbonate Hollow Sheets

PC hollow sheets are the most versatile polycarbonate sheets in the market. The glazing system provides outstanding flexibility in design, advanced heat reflection and light transmitting performance. Hollow sheets are manufactured from high quality polycarbonate resin that ensures high impact strength, clarity and excellent transparency, and are 16% the weight of standard glass and 34% the weight of acrylic sheets, which makes them easy to carry.

Due to its unique structure and design PC hollow sheets can be very light and can go from twin wall to 5 walled structures ensuring its lightness and improving its thermal insulation depending upon the applications.

With a wide range of options in terms of clear as well as diffused light,SRplas® Multiwall sheets can provide a maximum of 80 % and minimum of 25% light transmission. They allow light to enter, at a significantly lower heat transmission level, to ensure optimum illumination with maximum comfort. Excellent thermal insulation from the sheets results in phenomenal energy efficiency and savings in terms of primary capital and running costs of air conditioning and heating.

SRplas®Polycarbonate Hollow Sheets Features

	Benifits: Light weight very high impact strength Good light transmission Weather and UV resistance High thermal insulation Simply processed and install High fire performance rating
Types: Twin wall PC hollow Sheets Triple wall PC hollow Sheets Four wall PC hollow Sheets Five wall PC hollow Sheets Multi wall PC hollow Sheets Honeycomb PC hollow Sheets		Usage: Greenhouse Building skylight Carport Awning Indoor partition folding screen Furniture Bathroom Natatorium coverings
	Delivery: Within 7~10 working days Packing: Both sides PE protetive film,kraft paper&pallets are availalbe
